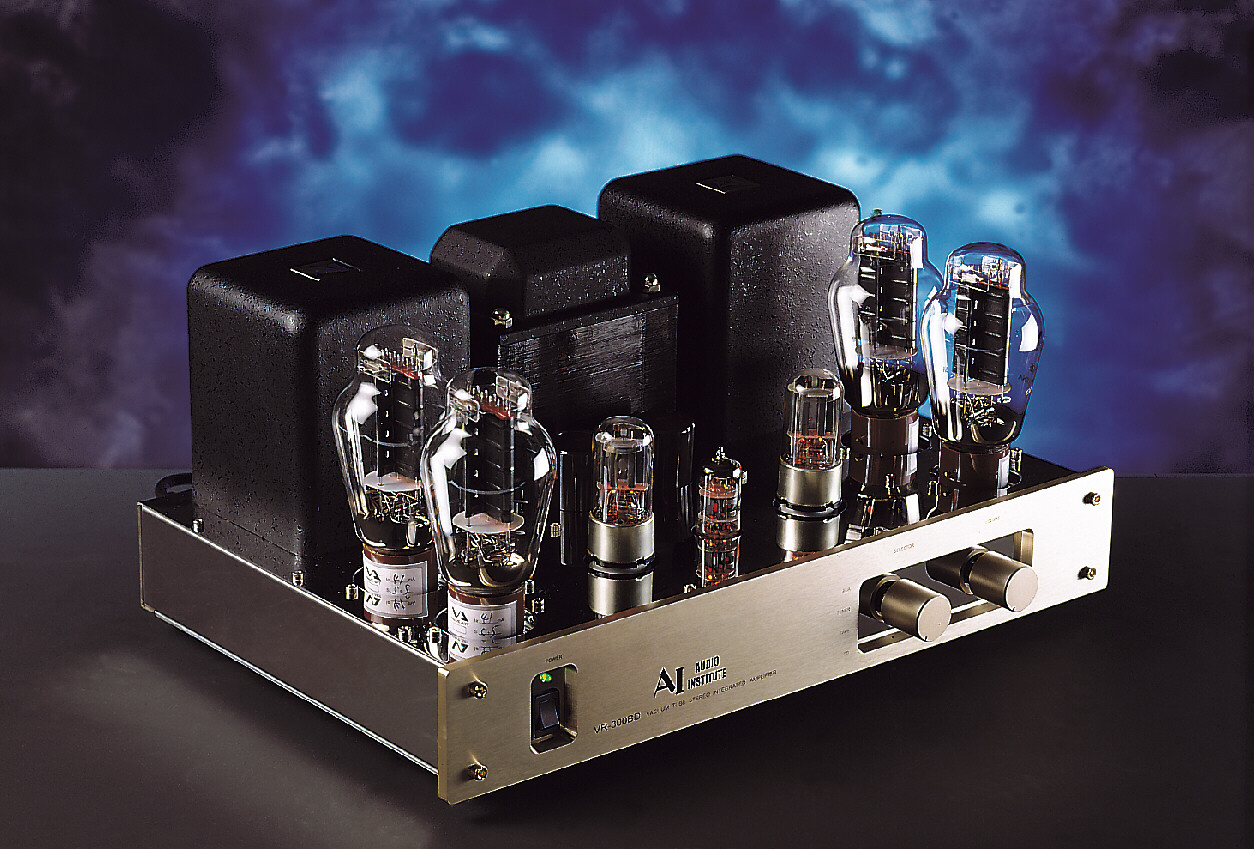

  • Name:  300B Parallel Single-Ended Power Amplifier
  • Item#.:  VR-300BD
  • Larger Image

Technical specification



Power Output: 18W＋18W(0dB,RMS)
Frequency Response: 20Hz~60KHz±1.5dB
THD: ≤1%
S/N: ≥90dB
Input Impedance: 100KΩ
Output Impedance:  4Ω, 8Ω
Vacuum Tube: 12AT7×1, 6SN7GT×2, 300B×4
Dimensions:W430mm×D330mm×H215mm
Weight: 23.0Kg
